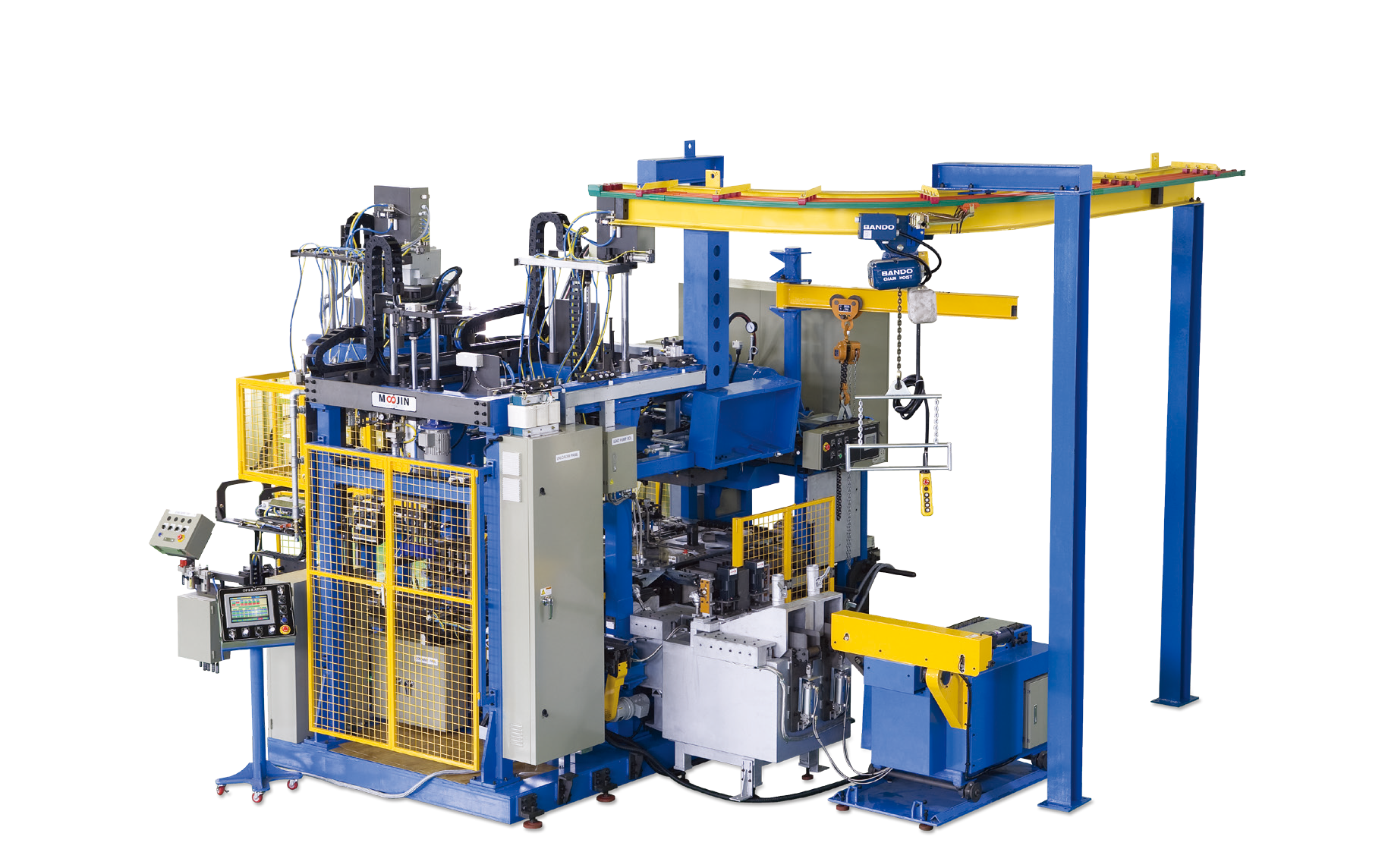

1. General teatures & merit

- Cycle Time : Approx. 4.5 Batteries / Min. of PE LN3 battery, 2.5 Batteries / Min. of AGM LN3 battery
- Full automatic operation in each station
- Battery type Changeover
  · Flooded Type Battery : Type B to Type D – Approx. 20 Min.
  · AGM Type Battery : Type B to Type D – Approx. 30 Min.
  · PE Type to AGM Type : Approx. 40 Min.

2. Machine details

- Applicable battery size : L185 - 345, W125 - 180, H175 - 250 (in mm)
- Air part : SMC
- Main power
  · Motor : 10kW
  · Mold : 18kW
  · Melting pot : 24kW
  · Preheat mould : 18kW
- Melting furnace : Electric furnace
- Control PLC : MITSUBISHI, Touch screen : PROFACE or MITSUBISHI
- Sensor : KEYENCE, OMRON, MITSUBISHI (USER OPTION)
- Approx. size & weight : L3,800 × W3,600 × H3,200mm / 12,500kg

3. Detail information of each process

• 1st STATION (Loading and Aligning)
  - With Vibrating table ass’y & auto lug align unit
  - Including auto loader of 180° rotation or linear type
  - Automatic clamp unit and two kinds of jig box
    (pneumatic type for normal battery and the other for VRLA battery with servo motor)

• 2nd STATION (Lug Brushing, Fluxing, Drying and Tinning)
  - Lug brushing, fluxing, drying and tinning station
  - MOOJIN recommendation : Lug brushing station should be installed in previous station (envelope stacker) since the lead dust will decrease fluxing quality.
                                                      But MOOJIN can install the lug brushing station as customer’s request.

• 3rd STATION (Molding)
  - Using servo motor for precise control of depth of lug in strap and also of the movement (timing of dipping and dipping speed)
  - Digital flow meter for precise control of cooling water amount
  - Mold pre-heat station has its own individual temperature control and water cooling system

• 4th STATION (Unloading)
  - Automatic group unloading & inserting unit into battery container including container feeding and discharging conveyor
  - 2 kinds of automatic jig box un-clamping unit (pneumatic type for normal battery and the other for VRLA battery with servo motor)
  - #2, #4, and #6 unloading grippers can rotate by 180°
  - Applying servo system to set up the distance of grippers (open / close)

4. Utility
