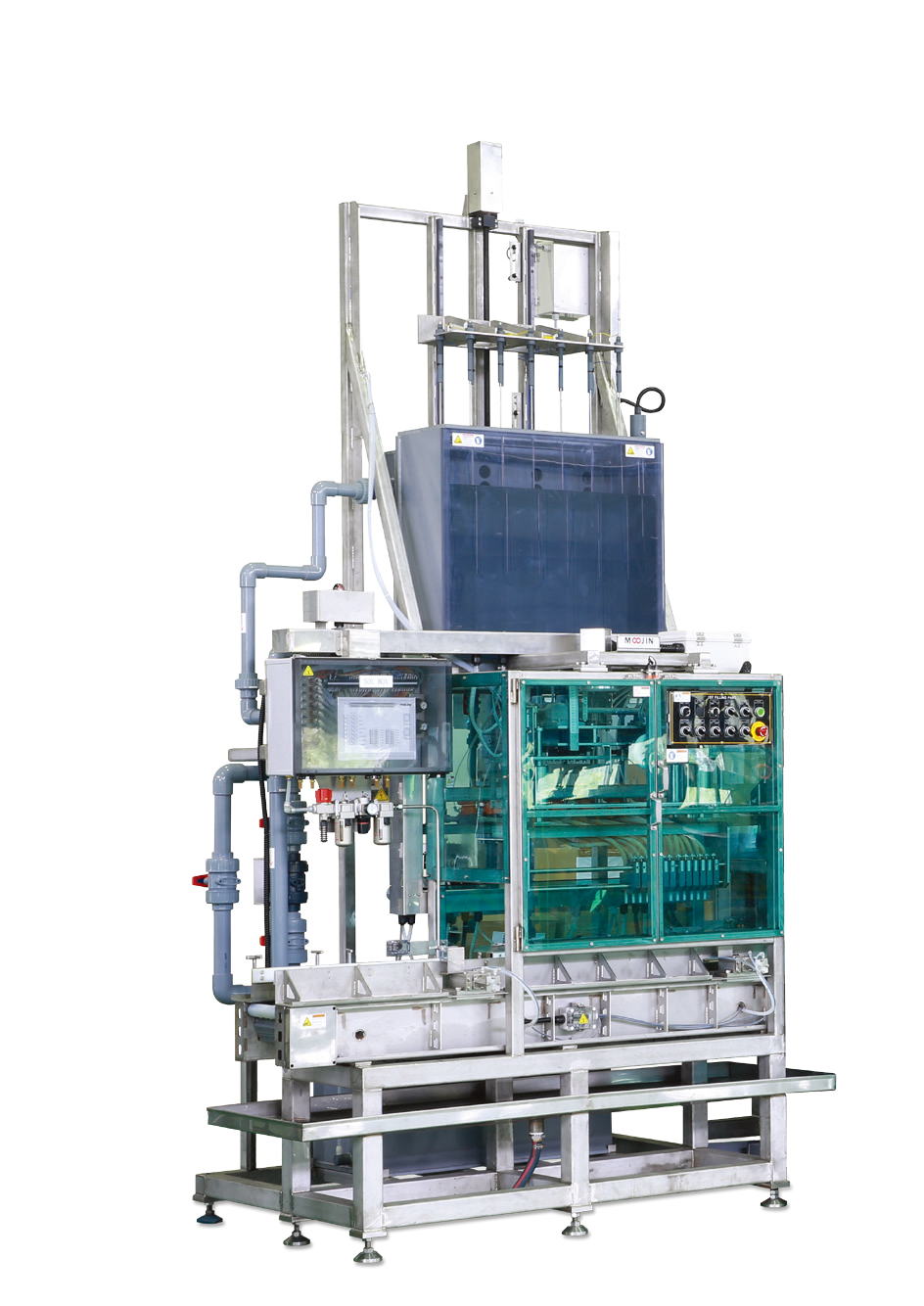

1. General teatures & merit

- Approximate cycle time : 8 Batteries / Min. of LN3 Battery
- Acid filling station only
- 2 batteries per cycle for 1 X 6 type battery
- Pump up acid to top tank and drain acid to keep constant acid in the acid measuring cups.
- 1 volumetric stick is installed inside of each cup.
- The volumetric sticks are moved and controlled by servo motor.
- Acid filling nozzle of special material for easy maintenance
- Acid filling by gravity, not by pump
- No need for changing tool while changeover
- Easy adjustment in setting nozzle distance while changeover
- No acid dripping on the cover after filling

2. Machine details

- Applicable battery size : L185 - 410, W125 - 180, H170 - 250 (in mm)
- Acid tank size : L600 X W360 X H900mm
- Conveyor belt : INTERLOCKS PVC BELT (S 400)
- Safety cover included
- Air part : SMC
- Frame & Cover material : SUS316L, PP, PVC
- Main power : 3kW
- Control PLC : MITSUBISHI, Touch screen : PROFACE or MITSUBISHI
- Approx. size & weight : L2,200 × W2,000 × H2,500mm / 2,000kg

3. Utility
