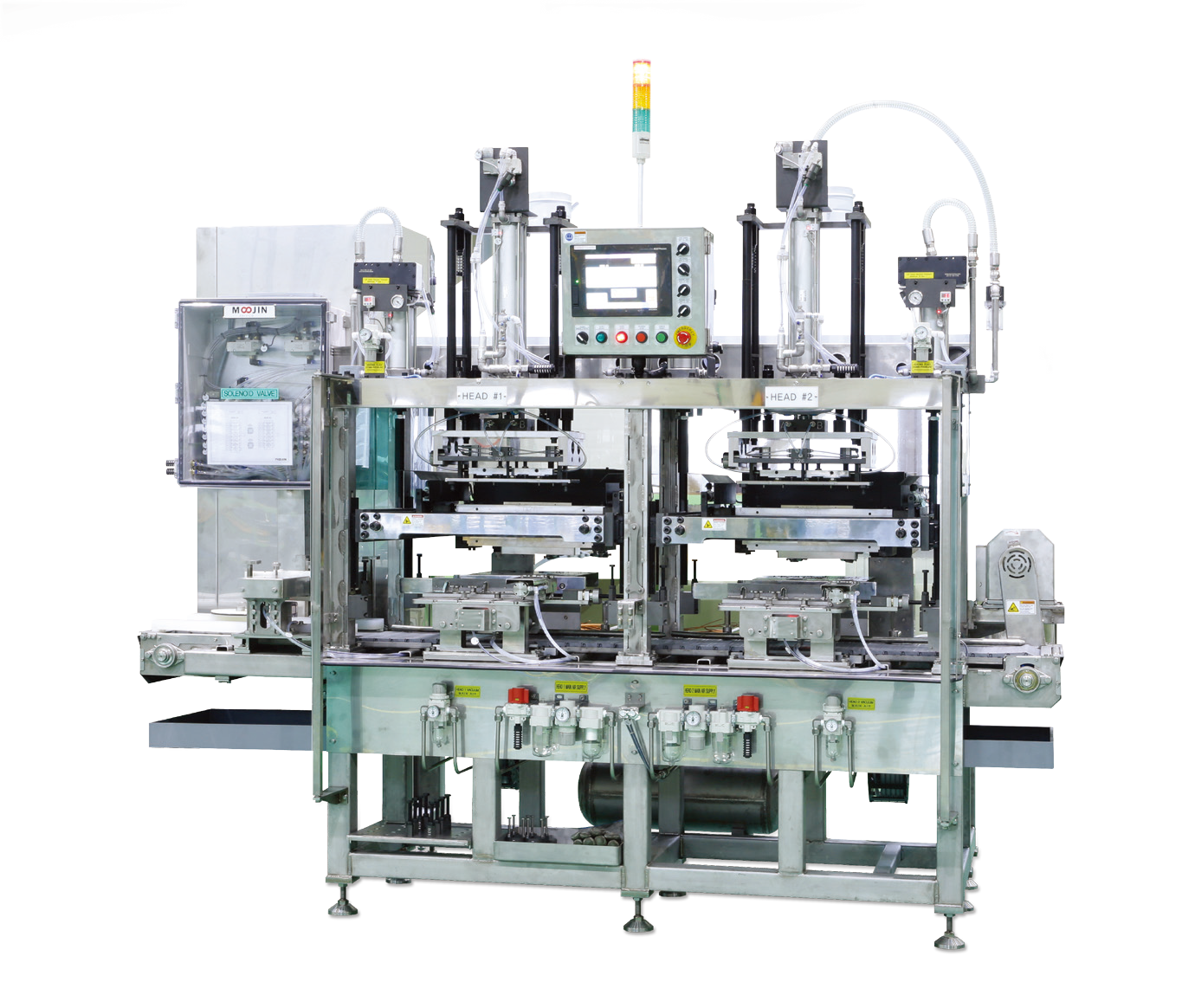

1. General teatures & merit

- Approximate cycle time : 8 Batteries / Min. of LN3 Battery
- 2 batteries / cycle
- Linear Motion Guide for precise and soft up / down movement of heating platen
- Precise and quality lid sealing by controlling up-down movement of each 2 head and each 2 cradle (Servo control - Option)
- Display panel included for detecting heater cut (Option)
- Pre-heating function (Option)
- Easy & quick changeover and precise positioning
- Automatic stop system if out of set temp. range
- Vacuum suction system for holding lid cover

2. Machine details

- Applicable battery size : L185 - 410, W125 - 180, H170 - 250 (in mm)
- Heating platen material : Special Aluminium
- Air part : SMC
- Main power : 26kW (Heating platen : 25kW, Driving part : 1kW)
- Control PLC : MITSUBISHI (USER OPTION)
- Approx. size & weight : L3,000 × W1,800 × H2,400mm / 2,500kg
- Standard accessory : Heating platen 2 sets for 1 battery type

3. Utility
