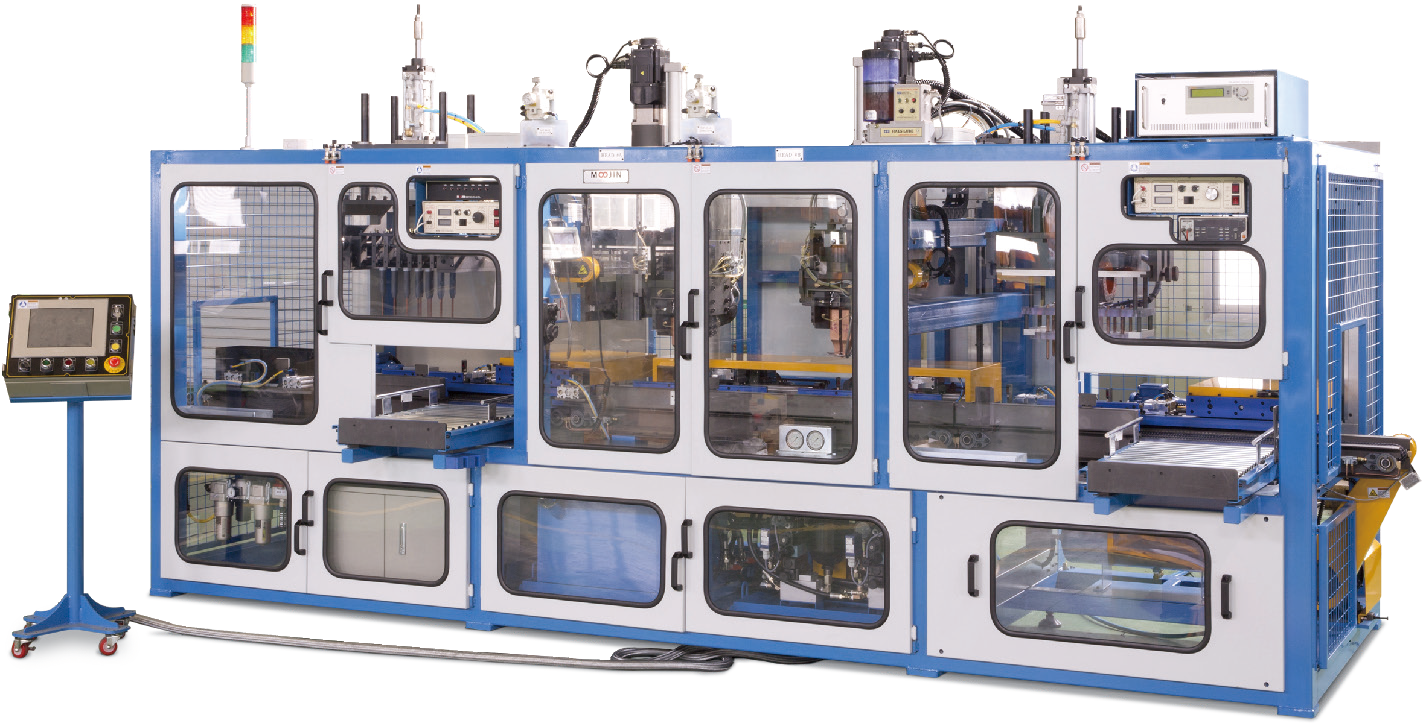

• COMBI-MACHINE
• POST CENTERING & COVER FEEDING MACHINE
• LID SEALING MACHINE
• POST BURNING MACHINE
• AIR LEAK TESTING & MFG. MARKING MACHINE
• COS III-C
• COS X
• AUTO PLATE LOADING MACHINE
• BATTERY PALLETIZING MACHINE
• COS II-D

1. General teatures & merit

- Cycle time : Approx. 4.5 Batteries / Min. of LN3 Battery

• 1st station : Short circuit tester
                         Reject station included after short circuit tester

• 2nd station : Inter-cell welder
                           High and stable quality welding by DC controller
                           Quick changeover by push button on touch screen
                           Individual hydraulic pump which can be adjusted pressure squeezing on each head
                           Supplying even and stable pressure continuously

• 3rd station : Voltage different tester (Strap welding quality tester)
                           Short circuit tester available after Voltage different test (Option)
                           Reject station included
                           Current : 0 to 50A (or 100A), Voltage : 0 to 9V

- Wide touch screen which shows current monitoring, statistical data and alarm message

2. Machine details

- Applicable Battery Size : L185 - 410, W125 - 180, H170 - 250 (in mm)
- Air part : SMC
- Main power : 250kW
- Control PLC : MITSUBISHI, Touch screen : PROFACE or MITSUBISHI
- Approx. size & weight : L4,750 × W1,500 × H2,200mm / 2,400kg
- Standard accessory : Weld tip (electric copper)

3. Utility
