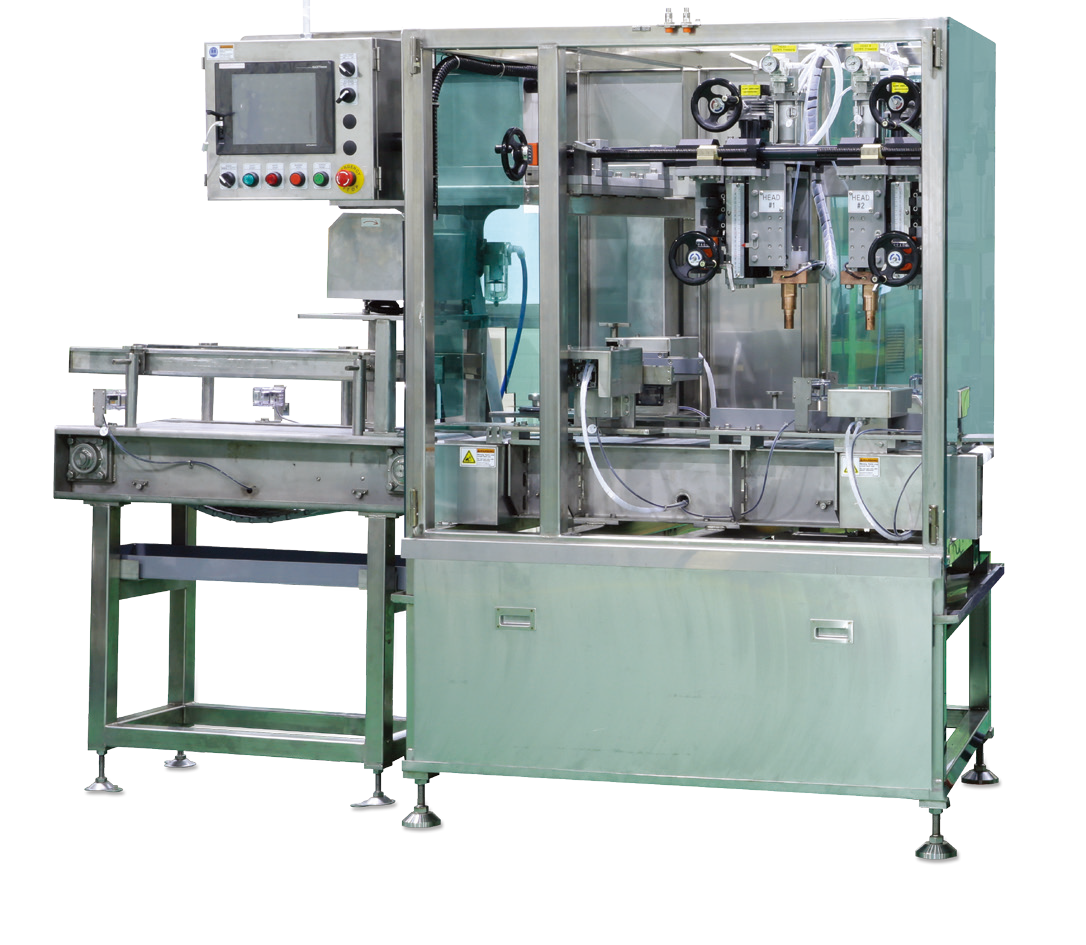

OCV TESTING & HIGH RATE DISCHARGING MACHINE

1. General teatures & merit

- Approximate cycle time : 8 Batteries / Min. of LN3 Battery
- 1st step is for IR testing(option), 2nd step is for OCV & HRD testing.
- Reject station included
- It is possible to choose CCD(Constant Current Discharge) or CVD(Constant Voltage Discharge).
- 1 head type (1 battery per cycle)
- The range of discharge current : 10A ~ 1500A
- Using FET(Field Effect Transistor) instead of SCR
  · FET is a variable resistance so it is possible to keep the resistance value during discharge of current.
  · Control PCB is used for a variable resistance.
- HMI(Human Machine Interface) system construction

2. Machine details

- Applicable battery size : L185 - 410, W125 - 180, H170 - 250 (in mm)
- Changeover time : Approx. 10 Min.
- Conveyor : PVC belt (S400) or rollers
- Air part : SMC
- Main power : 3kW
- Control PLC : MITSUBISHI (USER OPTION)
- Touch screen : PROFACE or MITSUBISHI
- Approx. size & weight : L1,900 × W2,400 × H2,300mm / 1,100kg

3. Utility

Utility
Standard electrical power 220 / 380 / 440V * 3-phase * 50 / 60Hz (USER OPTION)
Compressed air 5 ~ 6kg / ㎠
