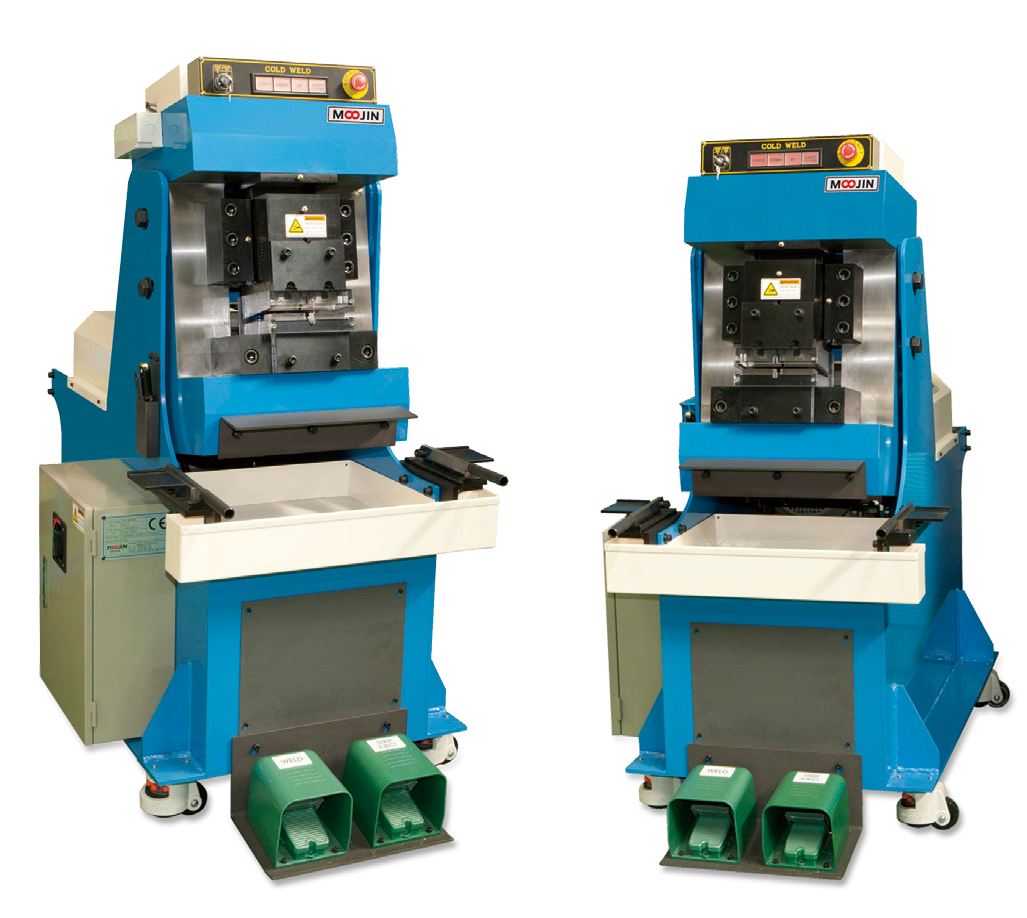

COLD WELDING MACHINE

1. General teatures & merit

- Cycle Time : 60 sec / cycle
- Better Productivity
- Not using heat but only physical force which is oil pressure for welding strips making use of lead metalic construction feature under normal temperature
- No need of cutting out the connected parts of strips
- Economize lead consumption
- Stronger construction and easier-to-use design
- Two welding heads are made of one body so that it does not get damaged even after long time use.
- Movement is very simple which enables whoever could run the machine.
- Designed to be able to control welding distance and welding speed so customer could weld wider variety of strip kinds depending on thickness, width, strength and alloy ratio
- Shorter Changeover time
- Tooling parts are assembled of inserting system so customer can change it in a very short time and very easily.
- Horizontal and Vertical welding are done simultaneously.

2. Machine details

- Applicable Strip Size : W 40~110mm, T 0.7~1.2mm
- Hydraulic : SOL – TOKIMEC, Pump – CASAPPA, Collar - HADACK
- Frame & Cover material : SM45C, SKD11
- Main Power : 6kW
- Approx. size & weight : L1,400 X W800 X H1,500mm / 1,500kg

3. Utility

Utility
Standard electrical power 220 / 380 / 440V * 3-phase * 50 / 60Hz (USER OPTION)
